PA6099W VHF-Middle bank (66~88Mhz) Two Way Radio with CE standard

CB-27 Handheld 27MHz CB Radio

CB-27 Handheld 27MHz CB Radio

Feature:

* Die-cast frame with high–impact case.

* Operating Channel: 256 channels for 6 banks.

* TX Power: FM 4W Power Output (7W expandable).

* Frequency range: 26~28 MHz (expandable).

* IP-54 water reistance (waterproof is option).

* Meet ETSI 300-135 & other standard.

* Wide range squelch function with 6 level.

* PC Programmable with RS232C.

* Optional Function: Auto Noise Squelch.



Technical Specification:
GENERAL
Frequency Range26 ~ 28MHz.
Frequency ControlPhase Lock Loop (PLL) synthesizer.
Channel spacing 10KHz
Modulation modeAM/ FM
Frequency Stability± 0.005 %
Channel step5/10KHz
Maximum channel256 channels
Operating Temperature Range-25°C to +50°C
Power Supply7.4VDC 2100mAH Li-Ion rechargable battery
Working Voltage6.8~8.4V
Antenna ConnectorTNC with 50 ohms
Dimensions120(H)X54(W)X35(D)mm
WeightAbout 250g(Including battery)
TRANSMITTER
AM / FM Power OutputFM: 1/4W (7W expandable)
AM: Carry power 1/3W with 50% modulation
Spurious Emissions-55 dB.
Carrier Suppression-55 dB.
Audio Frequency Response300Hz to 2.5KHz
Max. ModulationFM: +/- 2KHz
                                        AM: 1W with 90% & 3W with 50%
RECEIVER
AM Sensitivity For 20dB S/N< 1.0 μV.
FM Sensitivity For 20dB S/N < 0.4 μV.
Image Rejection Ratio> -65 dB.
Adjacent Channel Selectivity> -55 dB.
Automatic Gain Control (AGC) Figure of Merit100 mV for 10 dB Change in Audio Output.
Squelch Adjustable6 Levels
Audio Output Power> 0.5W
Signal to noise ratio> 40db
Internal Speaker8 Ohms; 1 Watts.


Optional Accessory

MP-01 Car-Adapter

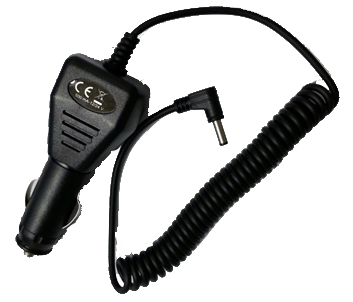

MC-500 Car-Charger


Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg



Komradio Genzo Royal 155XTM

155XTM/455XTM Professional Two Way Radio with Multi Language Display, Built-in BT-PTT & Bluetooth Voice Dongle Interface


Features:

Multi Language LCD display

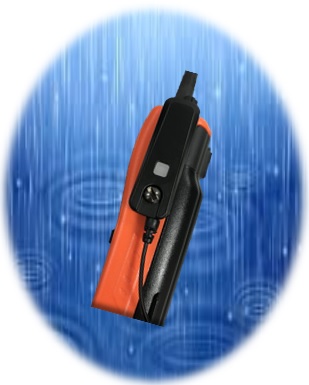

Meet IP-65/ IP-67 Waterproof Standard

Meet 300-086, R&TTE (CE) Standard

Built‐in Bluetooth & Data Transmission interface

9pin connector & Mx Antenna

Excellent Received Sensitivity

Repeater Tone Function

 Audio Scramble Function

Support Bluetooth Dongle Interface

Option:

66~88Mhz band is available

Bluetooth PTT Module

External Bluetooth PTT Device

2400 bps modem for GPS data communication

Standard Accessories:

7.4V/2400mAH Li-Ion Battery Pack,

 Rubbery Antenna, Belt Clip, Drop-in Rapid Charger

Optional Accessories:

 External PTT/Microphone/Earphone

 High capacity battery pack (7.4VDC/3000mAH Li-Ion)

 Wireless T-Coil PTT/Receiver

 Long Antenna

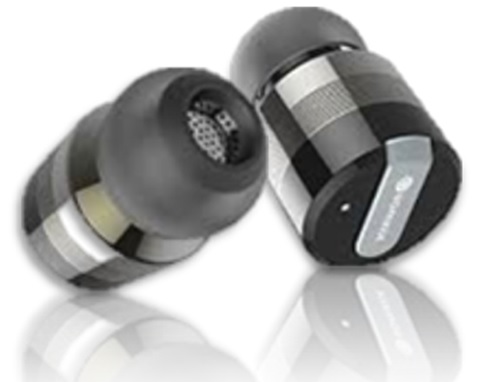

 Bluetooth Dongle & Earphone/Microphone



Technical Specifications

GENERAL

155XTM

455XTM

Frequency Range

136~174MHz

440~470MHz

Number of Channel

99

99

Channel Spacing

25KHor 12.5KHz

25KHor 12.5KHz

Microphone impedance

2K

2K

Operating Range

6.5~8.5V

6.5~8.5V

Nominal Input Voltage

7.4V

7.4V

Antenna Impedance

50ohms (MX Type)

50ohms (MX Type)

Dimensions(include Battery Pack)

120(H)X54(W)X35(D)(mm)

120(H)X54(W)X35(D)(mm)

Weight(With battery)

250g

250g

Stabilityin-25~+60

±5ppm

±5ppm

 Battery Pack

7.4/2400mAH Li-Lon

Battery

7.4/2400mAH Li-Lon

Battery

Tone Squelch

CTCSS & DCS (DPL)

CTCSS & DCS (DPL)

 TRANSMITTER





Power Output

0.5W/2.5W/5W

1W/4W

Max. Frequency Deviation

±2.5K/±5KHz

±2.5K/±5KHz

Harmonic and Spurious Rejection

Better than-36dbm

Better than-36dbm

Adjacent channel power

60/70db

60/70db

 RECEIVER





Sensitivity12dbSinard

0.16uV

0.16uV

Adjacent Channel Selectivity

60 db

60 db

Spurious Response Rejection

>70 db

>70 db

Signal to Noise Ratio

>40 db

>40 db

Audio Output Power(10% Distortion)

>0.5W

>0.5W



Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg

155XT Professional VHF Hign band Radio (136~174Mhz),Built-in Bluetooth Voice Dongle Interface




"Exclusive in Scandinavia Nordic"





M
ain Features:

*High impact construction with die-cast Frame.

*Excellent Received Sensitivity.

*IP-65 waterproof function.

*R&TTE(CE) Approval.

*25K/12.5KHz Channel Spacing Programmable.

*Flash MCU suit for customized.

*Built-in Whispering MIC function.

*Supports Bluetooth Audio Dongle.



Technical Specifications:

Model

 155BT / 155XT

 GENERAL

 Frequency range

 136~174MHz

 Number of Channel

 99

 Channel Spacing

 12.5k/25kHz programmable

 Microphone inputimpedance

 K ohm

 Operating voltage

 6.8~8.5V

 Nominal inputvoltage

 7.4V

 Antenna Impedance

 50ohm

 Powesupply

 7.4V/2100mAh Li-Ion Battery

 Dimension

 120(H) x 53(W) x 38.5(D) mm

 Temperature stability

 +/5 PPMin -20~ +55°C

 Frequency controlled

 Frequencsynthesized

 Weight

 315g(Batteryincluded)

 RECEIVER



 Sensitivity12db SINAD

 0.16uV

 Squelcsensitivity

 0.16uV

Adjacent Channel Selectivity

 >60/70db

 Signal to Noise Radio

 >40/45db

 Frequency Response

 +1/-3db i300Hz ~2.7KHz

 Audio output power

 >0.5W

 TRANSMITTER



 Power output

 0.5W 2.5W 5W

 Max. Frequency deviation

 ±2.5kHz / ±5kHz

 Harmonic rejection

 Better than-36dbm

 Adjacent channel power

60 70db

 Distortion

 <5%

 Frequency Response

+1/-3db i300Hz~3Khz

Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

66XT Professional VHF Middle bank (66~88Mhz) Radio

66XT Professional VHF Middle bank (66~88Mhz) Radio



"Exclusive in Scandinavia Nordic"








Main Features:

* Weather-resistant with die-cast frame, high–impact case.

* Frequency range: 66~88 MHz.

* 99 Channels and RF 5W Power Output.

* IP-65 water proof function.

* ETSI Approval.

* 6 squelch level.

* Multi Function Optional: IP-67 DTMF/CTCSS/VOX/5 TONE.

* Dual Channel Spacing Programmable.

* PC Programmable with RS232C.

* Flash MCU suit for customize.

* Built-in Whispering MIC function.

* BT model supports Bluetooth Audio Dongle.

* B/T Audio Dongle Plug and Play.

* Built-in Bluetooth Voice Dongle Interface.

Technical Specifications:

Frequency Range

66~88MHz

Number of Channel

99

Channel Spacing

12.5 or 25KHz

Operating Range

6.8~8.5V

Battery Pack

7.4V/2000mAH Li-Lon

Sensitivity 12db Sinard

0.16uV

Signal to Noise Ratio

40/45db

Adjacent  Channel Selectivity

60/70db

Spurious Response Rejection

70

Frequency Response

+1/-3db in 300Hz-3kHZ

Power Output

0.5W/2.5W/5W

Harmonic and Spurious Rejection

Better than -36bp

Tone Squelch

CTCSS

Dimensions

120 x 53 x 38.5(mm)

Weight

315g(Battery)

31XT Professional VHF Low bank Radio, built-in Bluetooth Voice Dongle Interface

31XT Professional VHF Low bank Radio, built-in Bluetooth Voice Dongle Interface



"Exclusive in Scandinavia Nordic"








Main Features:

 High impact construction with die-cast Frame

 Excellent Received Sensitivity

 IP-65 water proof function

 R&TTE (CE) Approval

 25K/12.5 KHz Channel Spacing Programmable

 Flash MCU suit for customized

 Built-in Whispering MIC function

 Supports Bluetooth Audio Dongle

 Option:

 Emergency 5 Tone function

 Repeater Tone function

 High capacity battery pack (7.4VDC/3000maH Li-Ion)

 IP-67 standard

 VOX function

 FFSK 2400 bps modem

 9pin Bluetooth adapter connect

Technical Specifications

GENERAL

Frequency range

30.93~31.57MHz

Number of Channel

99

Channel Spacing

10KHz programmable

Microphone input impedance

2K ohm

Operating voltage

6.8~8.5 V

Nominal input voltage

7.4 V

Antenna Impedance

50 ohm

Power supply

7.4V/2100mAh Li-Ion Battery

Operating temperature

-20~55

Operating Relativity Humidity Range

50%

Dimension

120(H)X54(W)X35(D)(mm)

Temperature stability

+/ 5 PPM in -20 ~ +55°C

Frequency controlled

Frequency synthesized

Tone Squelch

PL & DPL tone

Weight

315g(Battery included)

RECEIVER



Sensitivity 12db SINAD

0.16uV

Adjacent Channel Selectivity

>53 db

Spurious Response Rejection

> 70 db

Signal to Noise Radio

>40 db

Audio output power

0.5W

TRANSMITTER



Power output

1W/4W

Max. Frequency deviation

<2KHz

Harmonic and spurious rejection

-30 ~ -54 dbm

Adjacent channel power

>54dB


Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg
TS-2 / FRS/PMR Short Range Two Way Radio

TS-2 / FRS/PMR Short Range Two Way Radio



Features:

*ETS 300-220 & 300-296 Approval

* 8 or 22 Channels (for USA market only)

* VOX/ Call Tone/ Priority Scan function

* Busy Channel Lock out

* APO & TOT function



Option:

*DCS(DPL) TONE SQUELCH

*Bluetooth interface

Technical Specifications

Frequency Range

446.00625~446.09375MHz

Number of Channel

8 (could be expended)

Channel Spacing

12.5Khz

Operating Range

3.0~5V

Battery Pack

3PCS UM-4 battery

Sensitivity 12db Sinard



Signal to Noise Ratio

>40db

Adjacent  Channel  Selectivity

> 60 dB

Spurious Response Rejection

>70db

Audio Output Power

>0.3W

Power Output

0.5W (expand to 2W is available)

Harmonic and Spurious Rejection

Better than -36dbm

Tone Squelch

CTCSS

Dimensions

110(H)X54(W)X24.5(D)(mm)

Weight

110g(Battery NOT included)


      Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

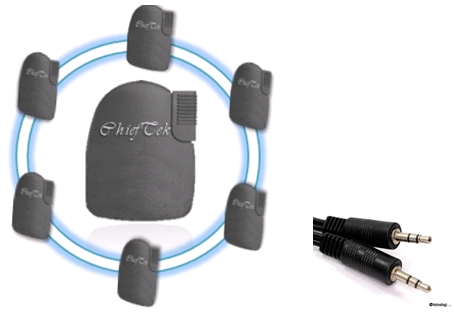

ALS-RX AssistiveListening System Receiver

ALS-RX AssistiveListening System Receiver

ALS Receiver Digital-1



Feature:

* Built-in Antenna by earphone piece.

* Comply with FCC & CE Standards.

* Different operating is acceptable.

* Built-in charging interface.

* High receiving sensitivity.

Technical Specification:

Dimensions

2.63”(67)W x 3.5”(89)H x 75”(19)D

Weight

4.32 oz./ 122.4 g (with battery)

Frequency Range

100-10,000 Hz.

Output Level

140mW @ 32 Ohms earphone.

Signal-to-Noise Ratio

>55 dB

Distortion

2%

Transmission Type

FM, wide bandwidth (60KHz), narrow band is option.

RF Frequency Range

37 Channels, 72-76 MHz.

Sensitivity

0.8 uV/m typical, for 12 dB SINAD.

Controls

On-Off /Volume, Channel, Selector (pre-program).

Earphone Jack

Standard 3.5 mm Mono.

Power Requirements

AA batteries x 2.

Battery Life

40 hours with Alkaline.



 Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

PTX-37 Assistive Listening Transmitter- Protable FM Radio Transmitter

Features:

* Preset 6 memory channels easy in used

* External Audio Input with Mixer function

* External Microphone cable built-in TX antenna

* Built-in LCD display

* Re-chargeable Ni-MH battery is workable

* Compliedwith part15of theFCCrules




TechnicalSpecifications

FrequencyRange:

37 channels,72-76MHz

FrequencyControl

Digitallysynthesized,Crystalcontrolled

FrequencyStability

0.01%

Audio Inputs

Microphone with 600Ohmbalanced,100mVAGCRange

Signalto NoiseRatio

60db

TransmissionType

FMModulation

MaxDeviation

25Khz total

MaxRadiated Power

800uV/m at30M PowerRequirements: 2xAAbatteries

Dimensions:

4 5/8"(H)x 3"(W) x 1 1/8"(D) Weight: 113.4 g(dry)

Current Consumption

Transmitting300mA


Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

XHT-230 Data Radio with 1.2k/2.4k bps modem

 Features:

Meet ETSI standard

Meet IP-5X composition

Compact & Rugged appearance

High stability & reliability

Modem built-in FEC function

Data/RF signal indicator

5W/10W/50W output power selectable.

Option:

PC programmer (by cable)

External program kit

Wireless programmer

2400bps,9600bps,19200bps modem optional

TechnicalSpecifications

Frequency Range

223~235Mhz

Number of Channel

99 Channel

Channel Spacing

25KHz or 12.5KHz

Modulation Mode

FFSK or GMSK with FEC

Operating Voltage

5.5~13.8V

Antenna Impedance

50 ohm (BNC connector)

Signal/Attack Time

40~100ms

Dimension

127(L)X104(W)X26.5(H)mm

Weight

About 480g

Stability in -40C~+65C

±0.00025%

Baud Rate

1200,2400bps

Data interface

RS232 or TTL

Performance

Meet ETSI standard & IP-5X

Operating Mode

simplex or Semi-duplex

Power output

5W

Sensitivity 12dB Sinad

0.16uV

Audio output power

>0.5W

Signal to noise ratio

40dB

FM Fun and noise

>40dB


  Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

XHT-235 Data Radio with 9.6k/19.2k bps modem

Features:

* Meet ETSI standard

* Meet IP-5X composition

* Compact & Rugged appearance

* High stability & reliability

* Modem built-in FEC function

* Data/RF signal indicator

* 5W/10W/50W output power selectable.



Option:

* PC programmer (by cable)

* External program kit

* Wireless programmer

* 2400bps,9600bps,19200bps modem optional

TechnicalSpecifications

Frequency Range

223~235Mhz

Number of Channel

99 Channel

Channel Spacing

25KHz or 12.5KHz

Modulation Mode

FFSK or GMSK with FEC

Operating Voltage

6~13.8V

Antenna Impedance

50 ohm (BNC connector)

Signal/Attack Time

40~100ms

Dimension

114(L)X96(W)X33(H)mm

Weight

About 400g

Stability in -40C~+65C

±0.00025%

Baud Rate

1200,2400,9600bps

Data interface

RS232 or TTL

Performance

Meet ETSI standard & IP-5X

Operating Mode

simplex or Semi-duplex

Power output

5W /10W programmable

Sensitivity 12dB Sinad

0.25uV


   Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

MSR-400 Scanner Radio

Features:

*Full VHF & UHF Band

*Low VHF Band, FM radio & Aircraft band are option

*High sensitivity & meet FCC standard

* Built-in PL & DPL Tone Squelch

* Programmable by PC, Key Pads,

* Use 3 PCS UM-4 battery

* With low battery indicator, Level Meter, back light,

    Technical Specifications
GENERAL
Frequency RangeBANK1: 25~54MHz, 136~174MHz, 176~520MHz,
BANK2: 88~108MHz (FM Radio option)
BANK3: 108~134MHZ (Aircraft AM Band, option)
Number of Channel100 (to be program each bank)
Channel Spacing10K/ 12.5K/ 25KHz
Modulation TypeAM/FM
Operating Range3.0~5V
Nominal Input Voltage4.5V
Antenna Impedance50 ohm (SMA type)
Dimensions110(H)X54(W)X24.5(D)m/m
Weight (including antenna)About 110g
Stability in -20~ +55±2.5ppm
Battery Pack3 PCS UM-4 battery
Tone SquelchPL & DPL tone (option)
Battery operating timeMore than 6 hours
Scan rate (w/o PL or DPL Tone)10 channels/ second
Program FunctionBY PC, Key Pads
Special FunctionBattery Capacity (Low Battery) Indicator, Level Meter, LCD Back light, --- etc
RECEIVER
Sensitivity 12db SINDAD< -120dbm
Adjacent Channel Selectivity> 60 db
Spurious Response Rejection> 65 db
Signal to Noise Ratio> 40 db
Audio Output Power> 0.3W

Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg

T-Coil Electronic Hearing Aid System, there are including External PTT/Microphone, Earphone, Multi connect cable.








Feature:

*  Suit forAll Mobile phoneorTwo Way Radio application.

*   Plug & Use, don’tnecessary to pairing beforeusing.

*   No Interference problemduring operation.

*   Lowcost ofwireless Earphone/Microphone/PTT accessory

*   Multi connecting which beused forTwo Way Radio,
     Mobilephone& Scanner& easy switchable
.

*   Invisible Receiver can beused forListening Assistant,
    Scannerorspecialapplication
.



 Technical Specification:

General

Driver mode

Magnetic Field with high efficient loop antenna

Operating Temperature Range

-25°C to+50°C

Power Supply

Tx doesn't need power except the mobile phone orother small sound source to boost the power

Connecting Cable

I-phone phone cable, Moto, Kenwood, Icom,CTE & other plug

Transmitter:

Dimensions

45(H)X26(W)X15(D)mm

Weight

About 45g (Including loop antenna & cable)

Distortion

Less than 5%

Audio Frequency Response

50Hz ~ 10KHz

Signal to noise ratio

> 45db

Receiver: There are several RX can choose by different application

Power Supply

RX: 3.7V or similar power by case

Dimensions

30(H)X17(W)X16(D)mm

Weight

About 20 g (including battery)

Distortion

Less than 5%

Audio Frequency Response

50Hz ~ 10KHz


 Are you interested in this product   Please contact us. b29b788621a79f03e59d25c0145cf92c.jpg

EX-PTT with T-Coil Earplug

Feature:
   Hearing Protect & Noise Reduction for noise environment application.
   Plug & Use, no pairing problem before using.
   No Interference problem during operation.
   Low cost solution for wireless earphone/microphone.
   Multi connecting be used for Mobile phone, different type Two Way Radio & others similar device.
   Compare to use with other T-Coil device.
   Invisible Earphone be choose by option.

Technical Specification:


Driver Mode:Magnetic Field with high efficient loop antenna
Operating Temperature Range:-25°C to+50°C
Power Supply:From Two Way Radio
Connecting Cable:Suit for CTE, Moto, Kenwood, iCOM, radio with different external plug
Dimensions:45(H) x 26(W) x 15(D) mm
Weight:About 45g (Including loop antenna & cable)
Distortion:Less than 5%
Signal to Noise Ratio:> 45db
Audio Frequency Response:50Hz ~ 10KHz

T-Coil Earplug4e9e66995920177f008fac06f4c8324e.png
Model number:HAE-1
Operating
Temperature Range
-25°C to+50°C
Operating time
(one charge)
About 12 hours
Electronic Power
on/off LED indicator

Charging indicatorTwo LED indicator
Power SupplyRX:3.7V Li-polymer rechargeable battery
Dimensions29 (L) x 25 (W) x 15 (T) mm
WeightAbout 5g (w/battery)
DistortionLess than 5%
Audio
Frequency Response
100Hz~10KHz
Audio Output Power6mW(preset)
Signal to noise ratio> 45db
Current ConsumptionStandby:< 0.5mA
Operating(Maximum output):<10mA

Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg


Bluetooth Dongle BT-D2A-P / BT-D9A-P












BT-D9_PTT General Specification:

Bluetooth Compliance: Bluetooth Specifications Version 4.0
Chipsets: CSR8670
Supported Profiles: GAP, SPP (Serial Port Profile), AG(Audio Gateway).
Frequency Band: 2.4GHz ISM Spectrum;Frequency hopping 79 Channels.
Modulation: GFSK(Gaussian Frequency Shift Keying); 1 Mbps.
RF Power: Class 2, 0-4dBm
Receivers Sensitivity: -86 dBm at 0.1% BER
Current drain: 30 mA
Operating Range: Up to 10m (Line of Sight).
Security: Security Mode 3(Pairing, Encryption, Authentication).
Power Source: From Radio Via I/O pin(re-chargeable battery pack is   optional).
Compatibility: Support Bluetooth V2.1(and above),PELTOR HF and HS   profile additions.
Other Specifications: IP54 Spec
Pairing Code: Default PIN code 0000. Dongle can stores IDs up to 5   previously paired devices.
Physical dimensions: 59.5*19*15.6mm



Are you interested in this product   Please contact usb29b788621a79f03e59d25c0145cf92c.jpg
